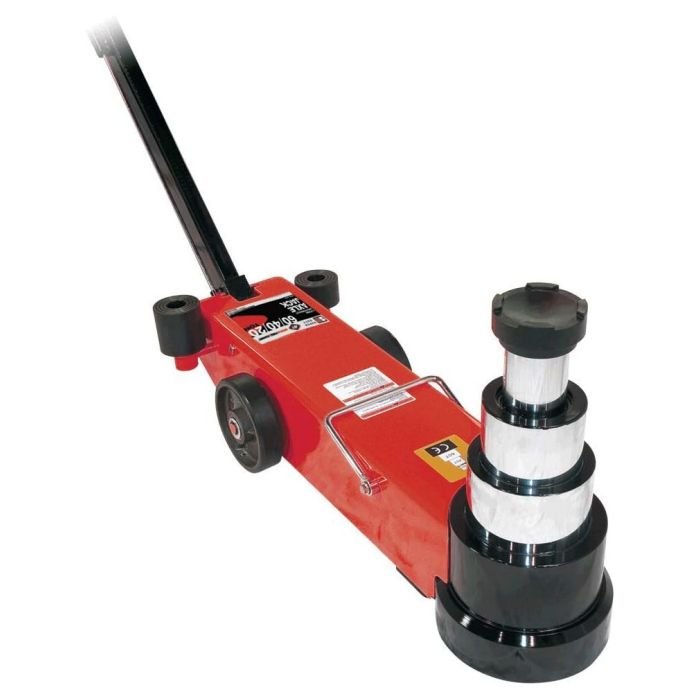

American Forge & Foundry’s  60-40-20-Ton 3-Stage Air Hydraulic Axle Jack is a super-duty axle jack built tough for the demands of the heavy-duty trucking, agricultural, fleet, construction, and military sectors. Features include industrial technology piston head seal design, extra long handle with three locking positions, integral descent metering, single piece base construction, double polished chrome pistons, air assisted lowering speed, and built-in overload safety valve. Includes saddle adapter and two extensions 1.75″ and 3″.

Features

• Super Heavy-Duty, 3 Stage 60 / 40 / 20 Ton Built Tough For The Demands Of The Heavy-Duty Trucking, Agricultural, Fleet, Construction, and Military Sectors
• The Piston Head Seal Design Is Borrowed From Industrial Technology Providing A Superior Low And High-Pressure Seal, Giving This Jack A Much Better Hold Under Severe Load Conditions

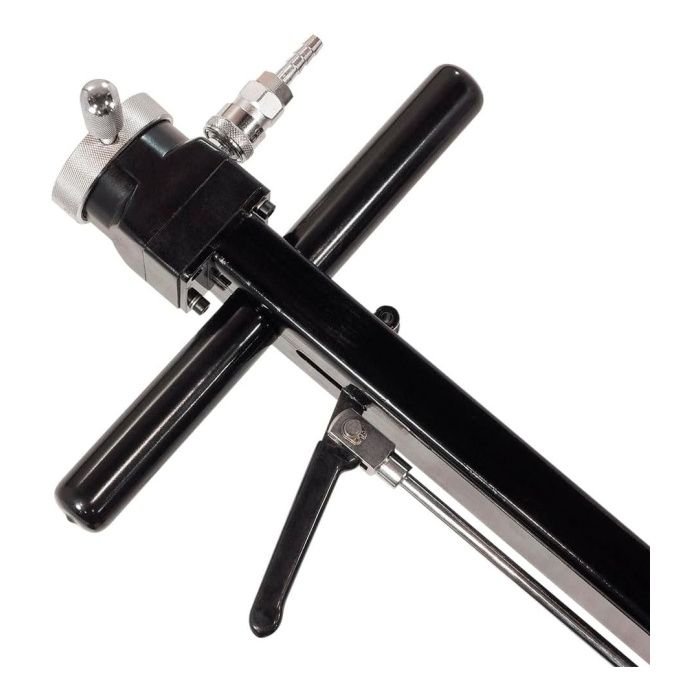

• The Extra Long 54″ (138Cm) Handle Can Be Locked In 3 Positions For Easy Positioning Of This Jack In Hard To Reach Places
• Integral Descent Metering Valve Maintains A Controlled And Safe Lowering Of The Load
• Single Piece Base Construction Provides Superior Strength For Increased Load Stability
• Double Polished Chromed Pistons Allow For Much Tighter Tolerances Which Reduce Oil Bypassing And Reduce Ram Scoring
• Air-Assisted Lowering Speeds Up Ram Retraction
• Built Overload Safety Valve Prevents Damage To Unit Due To Excessive Load
• Includes 2 Extensions 3″ (75Mm) And 1.75″ (45Mm) And Saddle Adapter
• Units Are Tested To -13°F (-25°C) And +113°F (+45°C) As Well As Center Loading To Ensure A Long Life Under Even The Harshest Conditions

Specifications

• 60-Ton (1st Stage) Low Height: 6.89″ (175mm)
• 60-Ton (1st Stage) High Height: 9.92″ (252mm)
• 60-Ton (1st Stage) Ram Lift: 3.03″ (77mm)
• 40-Ton (2nd Stage) Low Height: 6.89″ (175mm)
• 40-Ton (2nd Stage) High Height: 12.68″ (322mm)
• 40-Ton (2nd Stage) Ram Lift: 5.79″ (147mm)
• 20-Ton (3rd Stage) Low Height: 6.89″ (175mm)
• 20-Ton (3rd Stage) High Height: 15.91″ (404mm)
• 20-Ton (3rd Stage) Ram Lift: 9.02″ (229mm)
• Working Air Pressure: 116 to 174PSI (0.8 to 1.2 Mpa)
• Net Weight: 161 lbs. (73kg)
• Shipping Weight: 165 lbs. (75kg)
• Warranty: (3) Year Limited
