The Atlas Garage Pro 8000 is our most popular four post hobbyist lift. This lift is perfect for the customer with too many cars.

Single Point Lock Release – This Atlas Storage Lift has a manual single point release that allows the operator to release all the safety locks at one time. The spring loaded lock handle and power unit dump valve must be activated at the same time. (two hand operation) If the lock handle is released and the dump valve handle is still being pressed, the lift will continue to descend and all locks will automatically re-engage at the next lower lock point.

Double Lock Safety System – This Atlas Lift locking system offers a unique two position locking mechanism found only in commercial grade cable style four post lifts. The Double Lock Safety System is found exclusively on the Atlas Garage 408SL, Atlas Garage 409HP, Atlas Garage Pro 8000, the Atlas Garage Pro 9000, and the Atlas ST-7000. The Double Lock Safety System is designed to ensure that if a lifting cable becomes slack (for any reason), the secondary locking mechanism automatically engages. This Double Lock Safety System is found only on other four post above ground lifts costing hundreds of dollars more.

Lock Ladder Column Design – This Atlas Lift has a commercial grade lock ladder. We believe that the lock ladder system is the safest locking system for any four post lift. The lock ladder system also provides an infinite number of runway locking positions. The “old-style” welded locks could not be adjusted. The lock ladder is adjustable inside the column so that our customers can “micro-manage” the correct runway height to accommodate any vehicle. The “lock ladder” column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.

Includes Caster Kit with Polyurethane Caster Wheels – This Storage Lift comes standard with polyurethane wheels on the caster kit. These no-mark wheels allow the operator to roll the lift over an expensive epoxy floor with little risk of damage. Even if you have and old concrete floor, the polyurethane wheels on this lift make it easier to roll than the caster kit with the steel wheels. The caster kit can be installed or removed in just a matter of minutes and requires no tools.

Includes Approach Ramps – The included steel approach ramps can be easily removed by raising the lift to waist height, then lifting the ramps out. Each steel approach ramp weighs 46 lbs.

Includes Heavy Duty Jack Tray – The sturdy jack tray allows for the use of floor jacks or bottle jacks to raise part of any vehicle positioned on the lift. The versatile Jack Tray is also great for holding tools when working under a vehicle or as a catch tray when changing fluids or replacing parts. The jack tray features a heavy duty design for safe, reliable support. The jacking tray can also be easily moved from one end of the lift to the other so you can position it where necessary for each job.

Includes (4) Plastic Drip Trays, (2) Rubber Wheel Chocks, and (4) Steel Wheel Stops.

Features

• 8,000 lbs. Capacity
• Powder Coat Finish
• Single-Point Lock Release
• Lock Ladder Design
• Diamond Plated Steel Runways
• Caster Kit With Polyurethane Wheels Included
• (2) Steel Approach Ramps Included
• (1) Heavy Duty Steel Jack Tray Included
• (4) Plastic Drip Trays Included
• (4) Wheel Stops Included
• (2) Rubber Wheel Chocks Included
• Perfect For Storing Or Working On Vehicles

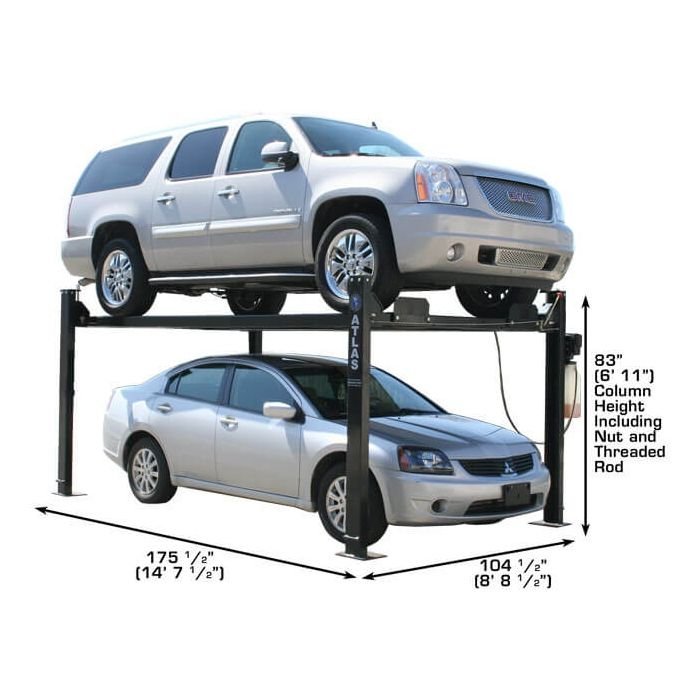

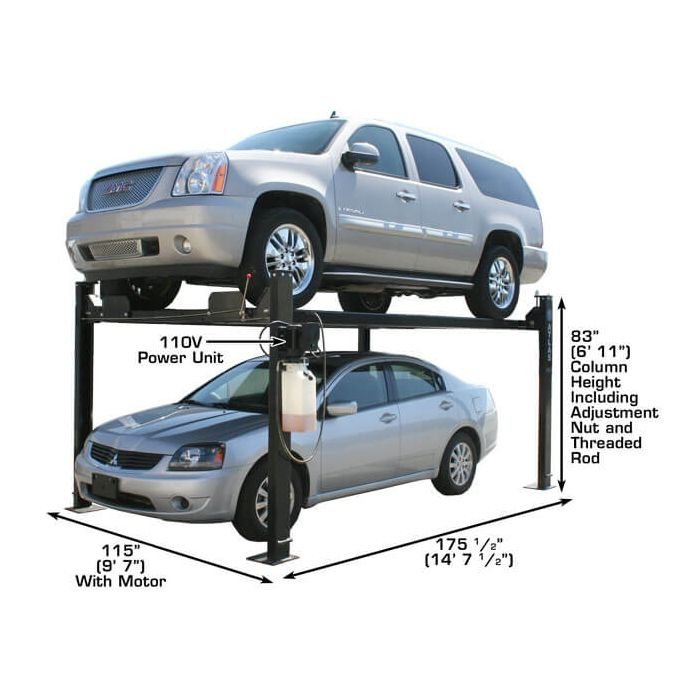

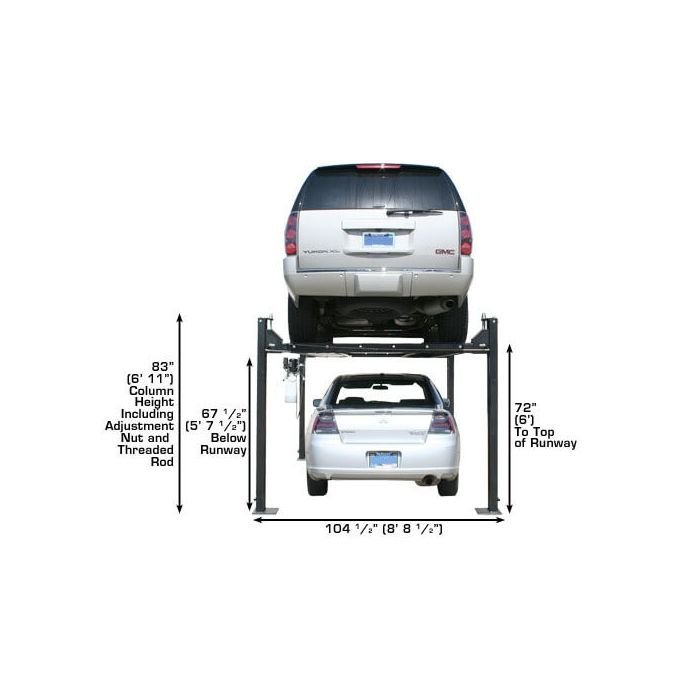

Specifications

• Capacity: 8,000 lbs.
• Lifting Height To Top Of Runway: 72″ (6′)
• Clearance Under Runways: 67-1/2″ (5′ 7-1/2″)
• Height of Columns: 83″ (6′ 11″)
• Overall Width (Without Motor): 104-3/8″ (8′ 8-3/8″)
• Overall Width (With Motor): 114″ (9′ 6″)
• Overall Length with Approach Ramps: 207-1/2″ (17′ 3-1/2 “)
• Overall Length without Approach Ramps: 175-1/2″ (14′ 7-1/2″)
• Approach Ramps: 37″ (3′ 1″)
• Runway Width: 18-1/2″ (1′ 6-1/2″)
• Runway Length: 165-1/2″ (13′ 9-1/2 “)
• Runway Thickness: 4-1/2″
• Width Between Runways: 37-3/8″
• Width Between Runway Rails: 31-3/4″
• Outside Runway to Outside Runway: 74-3/4″ (6′ 2-1/4″)
• Size of Column: 6-1/4″ x 3-3/8″
• Clearance Between Columns: 94-1/2″ (7′ 10-1/2″)
• Length Between Columns: 157-1/2″ (13′ 1-1/2″)
• Base of Column: 10-1/8″ x 11-3/4″
• Maximum Wheel Base: 153-1/2″ (12′ 9-1/2″)
• Drive Thru (Outside of tire to outside of tire): 80-1/2″ (6′ 8-1/2″)
• Cable Diameter: .350″
• Gauge Of Steel: 6 Gauge (.1875″/ 3/16″ / 4.75mm)
• Motor: 110 Volt
• Electrical Requirement: 30 Amp Breaker is Required
• Oil Requirement: 3-5 Gallons AW32/AW46
• Shipping Dimensions: 22″ W x 28-1/4″ H x 167″ L (1′ 10″ W x 2′ 4-1/4″ H x 13′ 11″ L)
• Shipping Weight: 1,720 lb.
• Warranty: 2 Years Structure, 1 Year Hydraulic, No Labor
