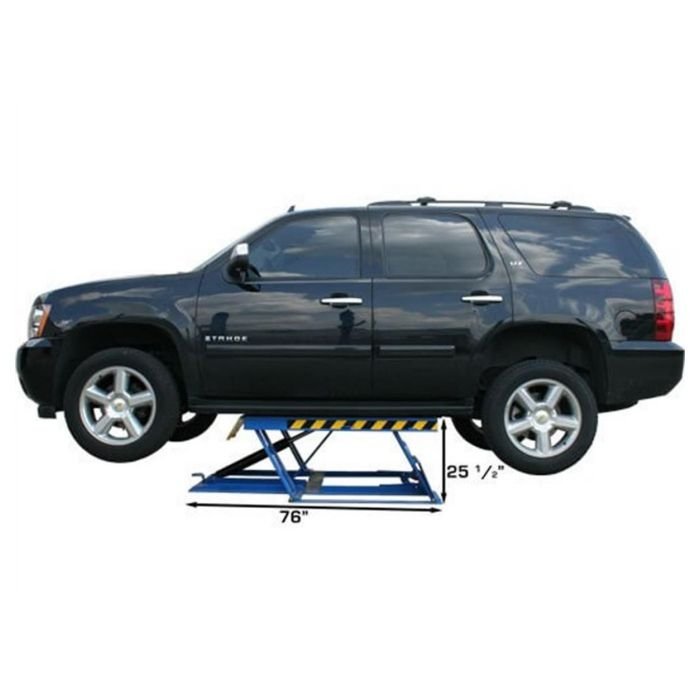

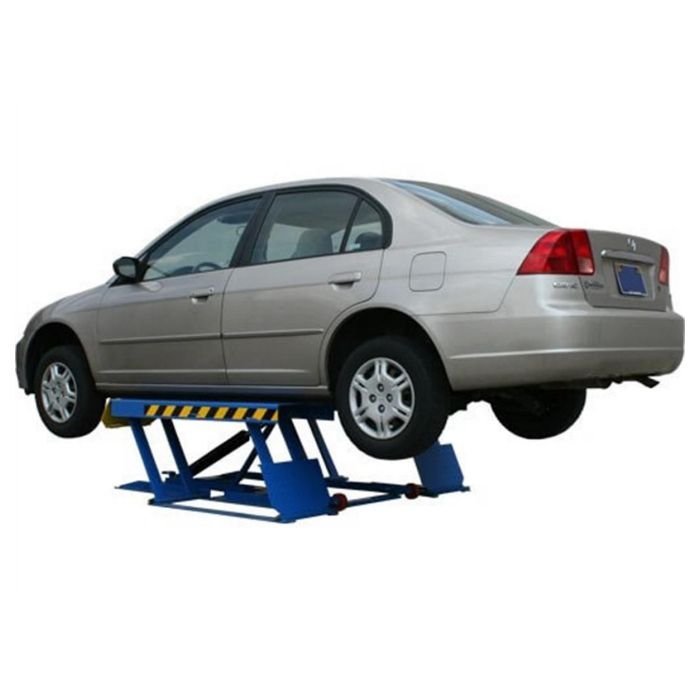

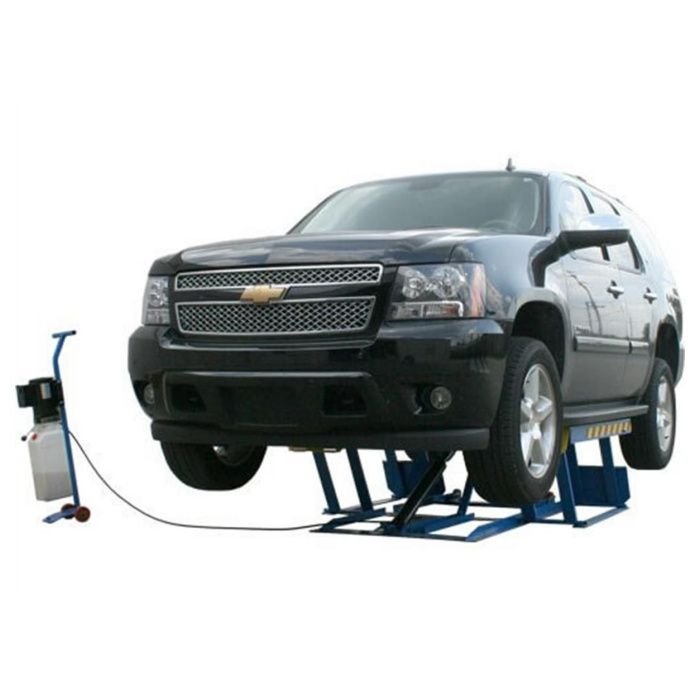

The Atlas LR06 Portable Low-Rise Scissor Lift with 6,000 lbs. capacity is the perfect addition to any garage that needs a quick sure fire method to raise a car to perform wheel service or body work. The LR06 low rise lift comes with rubber pads on the lifting surface. Multiple lock positions and a unique self actuating lock bar allow the operator to perform wheel service at a comfortable working height.

Features

• 6,000 lbs. Capacity
• Portable Standard Wheels and Power Unit
• 4″ Low-Profile Frame
• Multi-Position Manual Safety Locks
• 110 Volt Electric Operation

Specifications

• Capacity: 6,000 lbs.
• Maximum Lifting Height: 24″ (2′)
• Locking Position Heights: 12 1/4″, 18 1/2″, and 22 1/4″

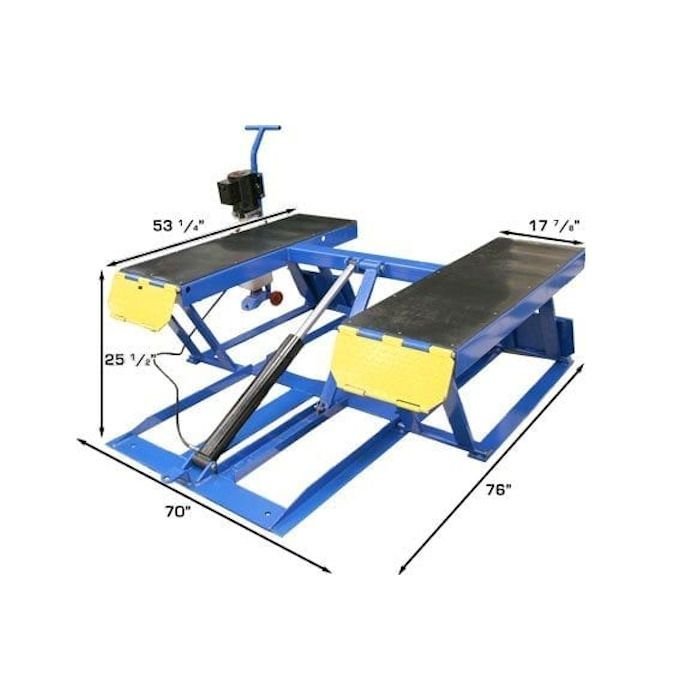

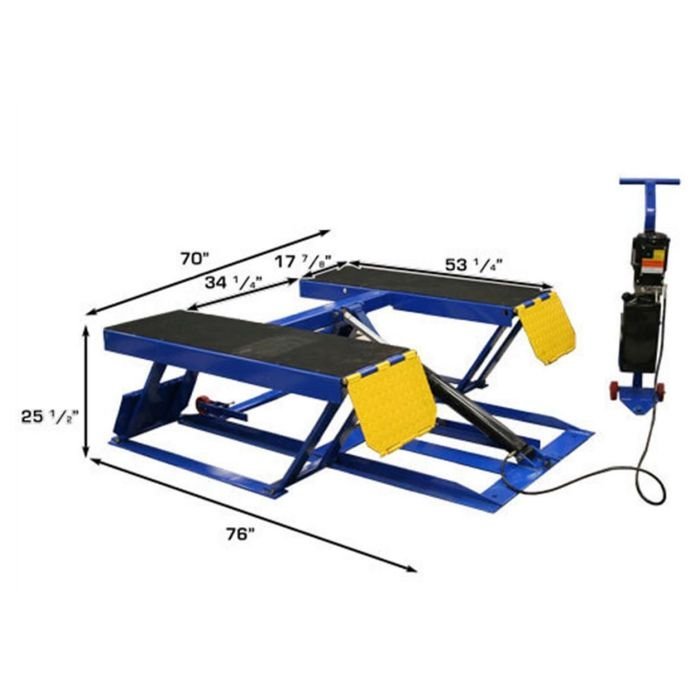

• Overall Pad Length: 53 1/4″ (4′ 5 1/4″)
• Overall Width: 70″ (5′ 10″)
• Overall Length: 79 3/4″ (6′ 7 3/4″)

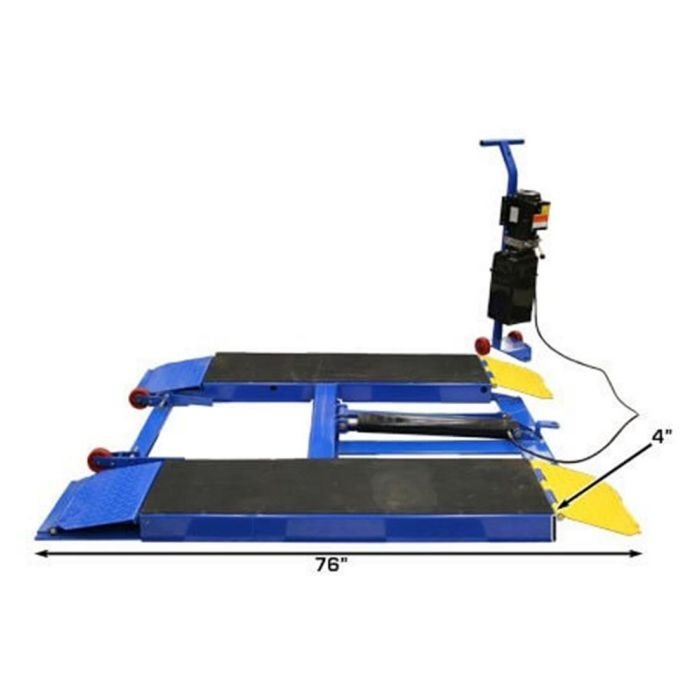

• Lowered Height: 4″
• Motor/Electrical Requirement: 110volt (PLUG NOT INCLUDED)
• Oil Requirement: 1.5-2 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 965 lbs.
• Warranty: 2 Years Structure, 1 Year Hydraulic, No Labor
