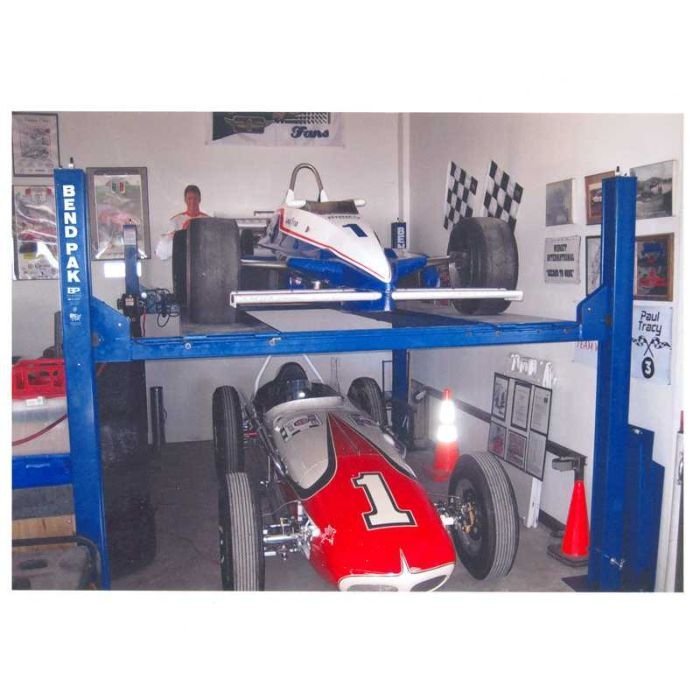

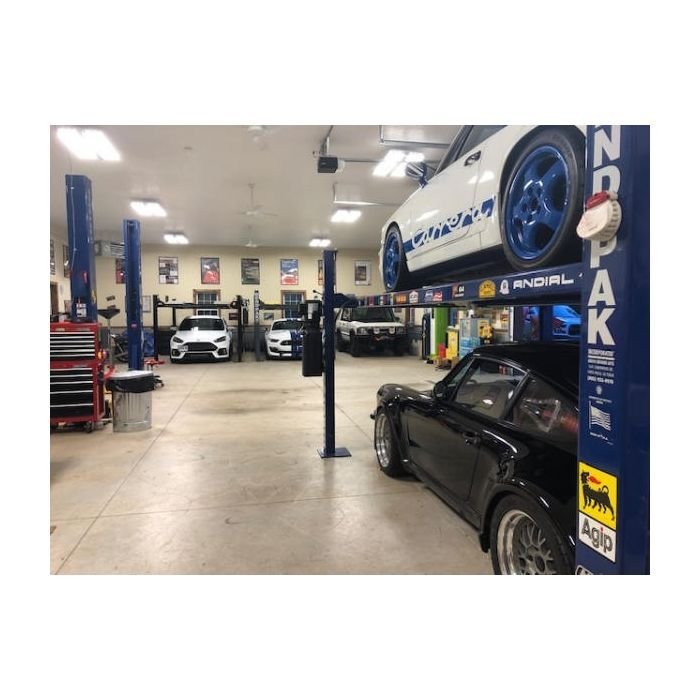

The HD-9ST is a rugged, standard-height, space-saver solution with a 9,000-lb. lifting capacity. Perfect for vehicle storage and service – at the shop or in the garage. Whether you’re a service professional or a DIY’er, BendPak’s got the right lift for you. This model is available with optional casters, dip-trays, jack platform and more.

Features

• 9,000-lbs. maximum lifting capacity
• Two different ramp lengths to choose from
• Narrow width for space efficiency
• Freestanding design

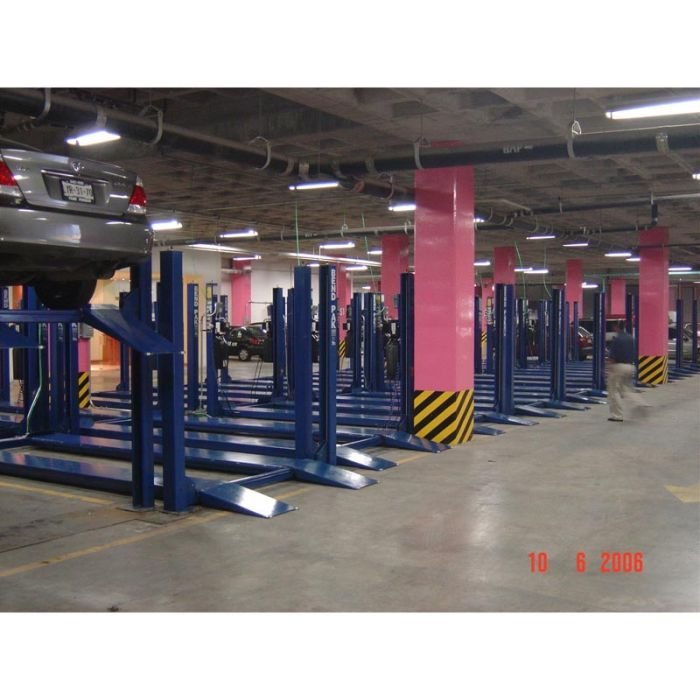

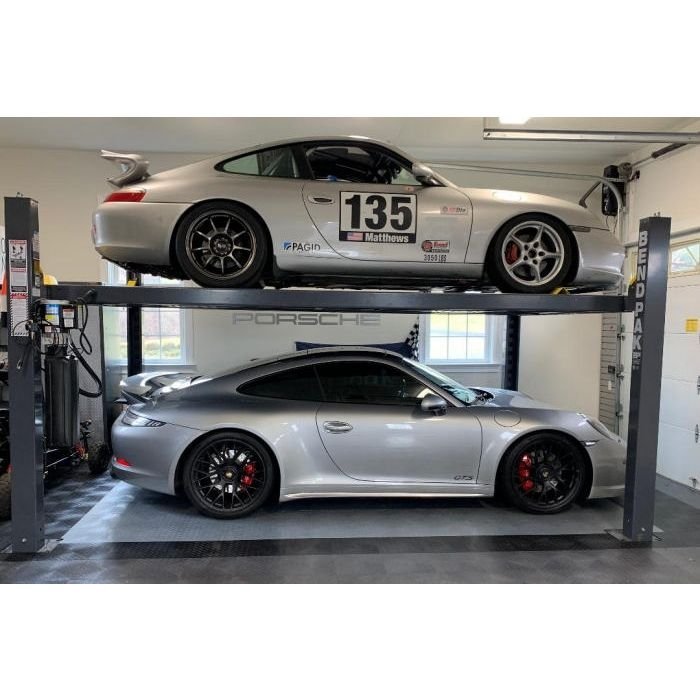

• Perfect for parking, storage and service
• Runways accommodate narrow and standard vehicles
• Runways include rail-kit for optional accessories
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks and sheaves
• Internal anti-sway slider blocks in each column

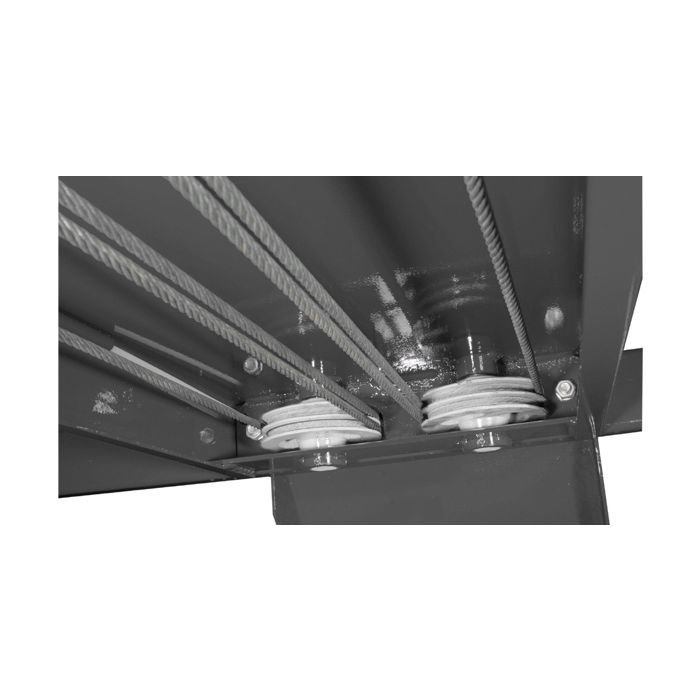

• Oversized self-lubricating cable rollers
• Features heavy-duty 3/8″ aircraft cable
• Rugged 1-1/4″ roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Push-button pneumatic safety release
• Independent backup slack-cable safety latches
• Customizable power unit location
• Removable steel approach ramps included
• Extra long approach ramps for low-ground clearance vehicles optional
• Optional drive-thru ramps available
• Optional drip trays available
• Optional solid deck available to increase storage capacity

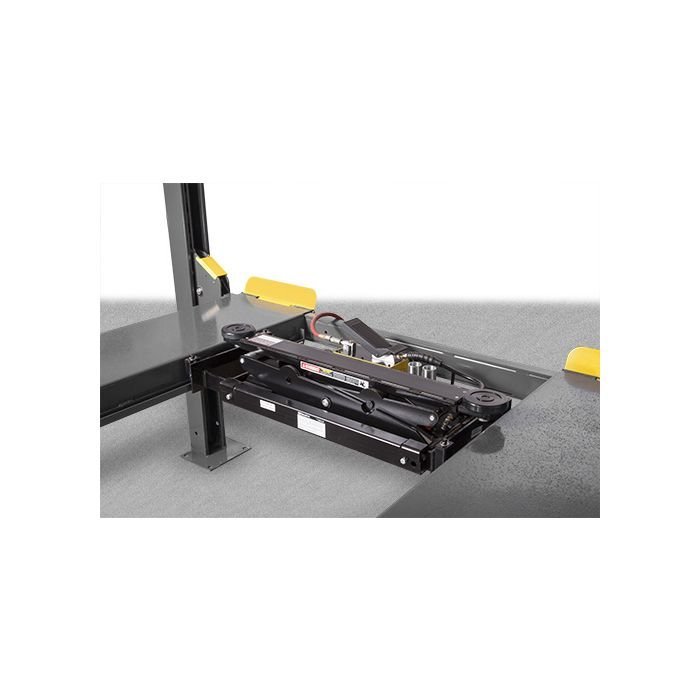

• Optional 4,500-lbs. air / hydraulic rolling jacks available (Model RJ-45)
• ETL Approved

Specifications

• Lifting capacity*:9,000 lbs. / 4,082 kg
  • *Max capacity / front axle: 4,500 lbs. / 2,041 kg
  • *Max capacity / rear axle: 4,500 lbs. / 2,041 kg
• Overall width: 99-3/4″ / 2,534 mm
• Outside length: 174″ / 4,420 mm
• Overall length: 200″ / 5,080 mm
• Height of columns: 88″ / 2,235 mm
• Runway min height: 4-1/2″ / 114 mm
• Max rise: 70″ / 1,778 mm
• Max lifting height: 74-1/2″ / 1,892 mm
• Width between posts: 89-3/4″ / 2,280 mm
• Runway width: 19″ / 483 mm
• Width between runways: 37-1/2″ / 952 mm
• Runway center line: 56-1/2″ / 1,435 mm
• Outside edge of runways: 75-1/2″ / 1,918 mm
• Length of runways: 164″ / 4166 mm
• Min. wheelbase @ rated capacity: 115″ / 2,921 mm
• Min. wheelbase @ 75% capacity: 100″ / 2,540
• Min. wheelbase @ 50% capacity: 85″ / 2,159 mm
• Min. wheelbase @ 25% capacity: 70″ / 1,778 mm
• Locking positions: 12
• Lock spacing: every 4″ / 102 mm
• Lifting time: 45 sec
• Motor: 220 VAC / 60 Hz / 1 Ph
• Shipping Weight: 1,872 lbs. / 851 kg
• Shipping Dimensions: 180″ x 22″ x 40″ / 4,572 mm x 559 mm x 1,016 mm
