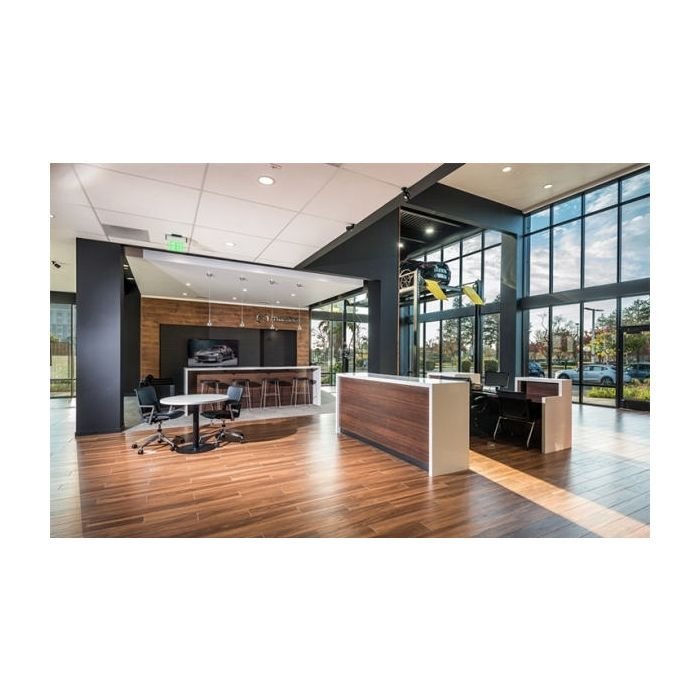

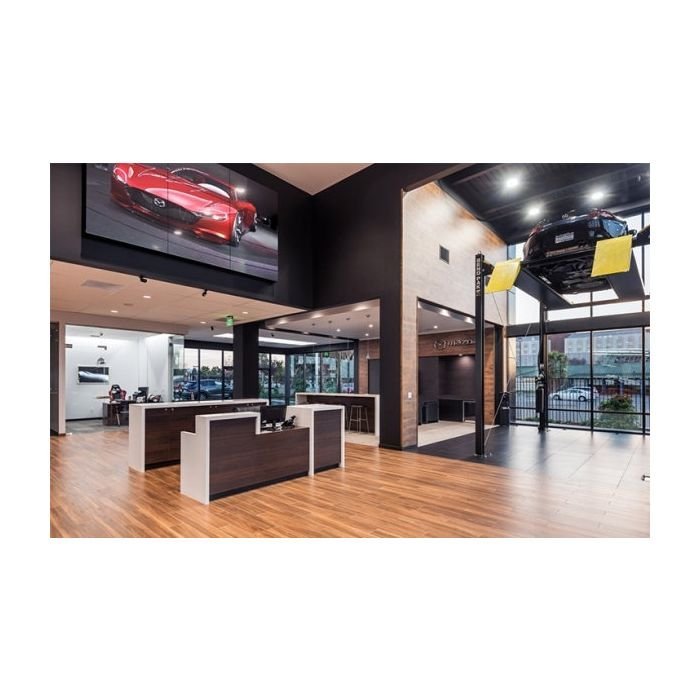

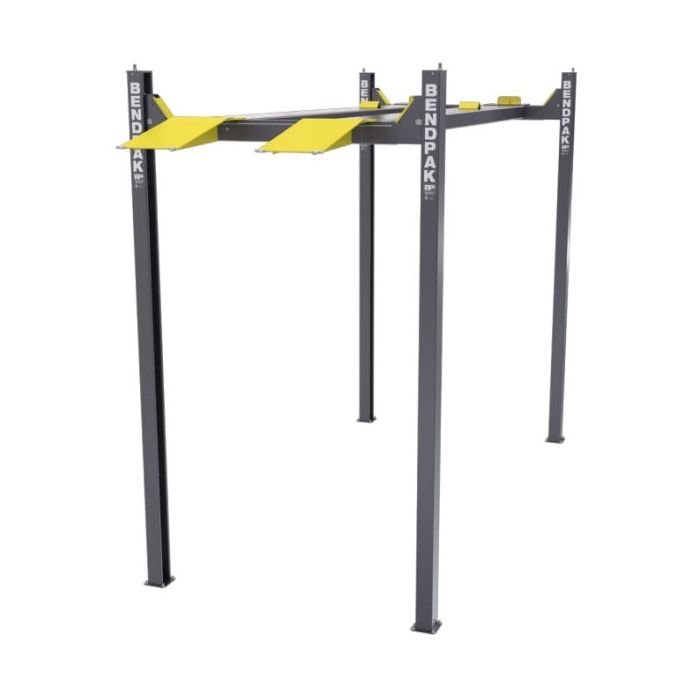

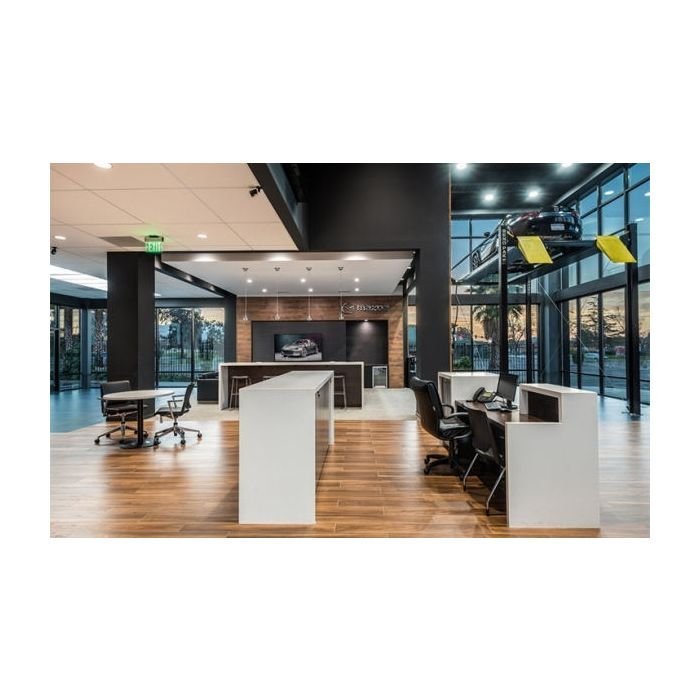

The HD-7MZ is a literal giant. This four-post lift is also a magnificent display platform and will effortlessly lift up to 7,000 lbs. over 12 feet into the air! Specially made for dealers, it’s perfect for stacking taller vehicles and getting them seen!

Features

• 7,000-lb. maximum lifting capacity
• Super tall rise of delivers 12-feet of lifting height
• Low sheen black color
• Underside of runways are shielded by full-length covers
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Internal anti-sway slider blocks in each column
• Oversized self-lubricating cable rollers
• Features heavy-duty 3/8″ aircraft cable
• Rugged 1.25″ roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Push-button pneumatic safety release

Specifications

Capacity

• Lifting Capacity*: 7,000 lbs. (3,175 kg)
• *Max Capacity / Front Axle: 3,500 lbs. (1,588 kg)
• *Max Capacity / Rear Axle: 3,500 lbs. (1,588 kg)

Rise

• A – Min. Runway Height: 4.5″ (114 mm)
• B – Max. Rise: 140″ (3,556 mm)
• C – Max. Lifting Height: 145″ (3,683 mm)
• Time to Full Rise: 60 seconds

Outside Dimensions

• D – Overall Width: 110.25″ (2,800 mm)
• E – Outside Length: 198″ (5,029 mm)
• F – Overall Length: 224.5″ (5,702 mm)
• G – Height of Columns: 158″ (4,013 mm)

Inside Dimensions

• H – Width Between Columns: 100″ (2,540 mm)
• I – Drive-Thru Clearance: 86.5″ (2,197 mm)

Runways

• J – Runway Width: 19″ (483 mm)
• K – Length of Runways: 188″ (4,775 mm)
• L – Width Between Runways: 37.5″ (953 mm) or 44.5″ (1,130 mm)
• M – Runway Centerline: 56.5″ (1,435 mm) or 63.5″ (1,613 mm)
• N – Outside Edge of Runways: 75.5″ (1,918 mm) or 82.5″ (2,096 mm)

Minimum Wheelbase

• Rated Capacity: 135″ (3,429 mm)
• 75% Capacity: 115″ (2,921 mm)
• 50% Capacity: 95″ (2,413 mm)
• 25% Capacity: 80″ (2,032 mm)

Locking

• Locking Positions: 30
• Lock Spacing: Every 4″ (102 mm)

Power Unit

• Motor: 208-230 VAC / 50-60 Hz / 1Ph
• Noise: 45 dB
