Enjoy Beauty Everywhere

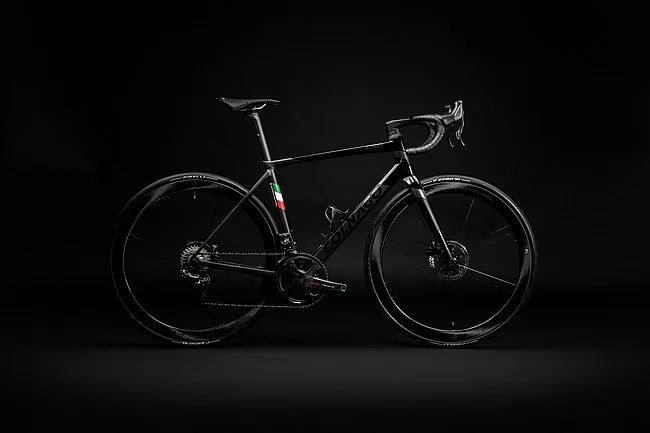

The Colnago C68 AllRoad Frameset is for a road bike, but also a light gravel bike. It is Colnago’s first model designed to be smooth and easy to ride on both asphalt and dirt roads. And it’s handmade in Italy.

This bike is for those who see cycling as everyday exploration. It has space for tires up to 35 mm and geometry designed for better handling on dirt roads and comfort on longer tours.

The Allroad has a higher stack and shorter reach than its road counterpart. It is perfect for anyone looking for a shorter and higher riding position, as well as improved rideability on rough roads and greater comfort over long distances.

The Modular Frame

The frame is constructed from several carbon parts that are hand-assembled in Italy through joints and interlocks.

The carbon bands are applied manually at the joint between the carbon modules, after which they are filed and polished to achieve the look of a monocoque frame with the best Colnago modular frame properties.

The tradition of modular carbon frames began at Colnago in the early 1990s. Colnago was the first brand in cycling history to introduce carbon frames to professional teams, winning a technically demanding race like the Paris Roubaix with the legendary C40.

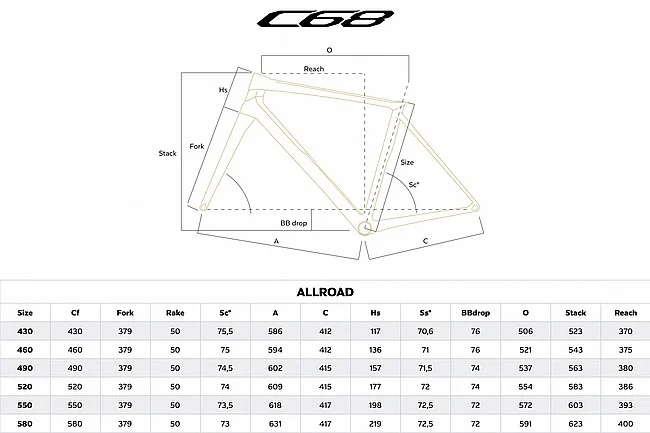

Colnago uses actual seatube length for their size measurement. Please use the geometry chart to determine the correct size. If you have any questions please feel free to contact us and our Customer Service team will be happy to help you determine your proper size.

Features:

• Frame (material): Modular carbon frame construction, 8 carbon parts
• Fork (material, section notes): Carbon fork for disc brakes, integrated cables, 1″1/8 section, steerer tube expander plug with hidden tool
• Headset: ID: 35 OD: 47 36°/45° CeramicSpeed SLT Treated Bearings
• Seatpost: Carbon seatpost, 0.15 offset, “D-Shape” section
• Through axles: Diameter: 12 mm, length 100 mm (front) – 142 mm (rear)
• Maximum tire size: 35 mm (nominal width)
• Bottom bracket: T47
• Brakes: Flat Mount Disc
• Disc size: Up to 160 mm
• Weight limit: This model has an overall maximum limit (combined weight of bicycle, rider, and load) of 120 kg
