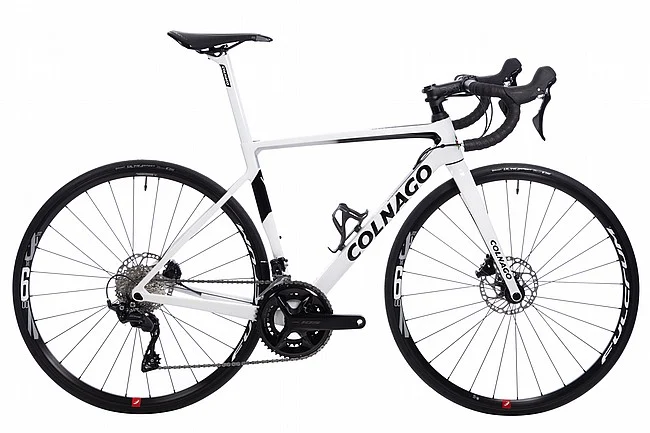

Lightness & Responsiveness, with Colnago Charm

The Colnago V3 Shimano 105 12spd combines technical solutions aimed at lightness along with other details designed to favor aerodynamics. The frame is monocoque carbon with a clean, essential design and can fit tires up to 28 mm. With the V3 you get a beautiful, fast Colnago that won’t go unnoticed.

Quality carbon and fittings designed to offer an excellent level of performance make the V3 a perfectly balanced bike in every respect. The design combines technical features with light and aerodynamic details.

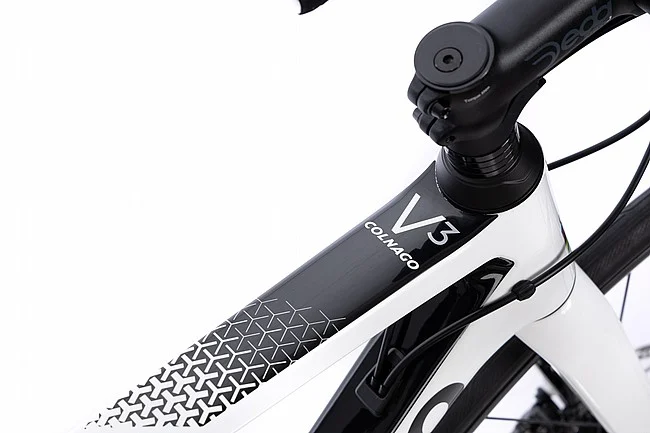

The V3 uses the unique TFS Integrated fork system. The cables run inside the Collage Sr9 stem and then through the fork stem. This makes for an extremely sleek and technically more aerodynamic frame. A shorter head tube and longer fork than previous models create enhanced rideability and responsiveness. These features, combined with quality carbon, make this bike perfectly suited to both climbs and flatter terrain.

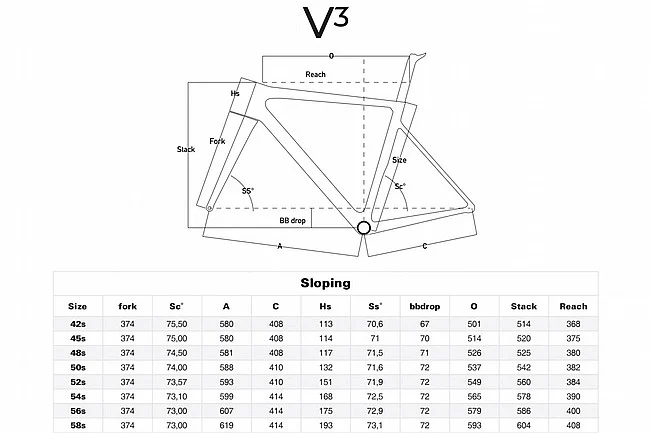

Note: Colnago uses actual seatube length for their size measurement. Please use the geometry chart to determine the correct size. If you have any questions please feel free to contact us and our Customer Service team will be happy to help you determine your proper size.

Features:

Frame kit

• • Frame (material): Monocoque carbon
  • Fork (material, section notes): Carbon fork for disc brakes, integrated cables, section with cut circumference
  • Headset: ID30.1 OD41 36°/45°
  • Seatpost: Carbon seatpost, 0.15 offset, “D-Shape” section
  • Through axles: Diameter: 12 mm, length 100 mm (front) – 142 mm (rear)

Drivetrain

• • Shifting system: Shimano 105 12s Disc
  • Front derailleur: Shimano 105 FD-R7100
  • Rear derailleur: Shimano 105 Shadow RD-R7100
  • Chain: Shimano 105 CN-M7100 12V
  • Crankset: Shimano 105 FC-7100 50-34T
  • Cassette: Shimano 105 CS-R7100 11-34 12v
  • Bottom bracket: Shimano SM-BB72-41B Press Fit Movement 86.5×41
  • Crank length: Sizes 42s – 48s: 170 mm, Sizes 50s – 54s: 172.5 mm, Sizes 56s – 58s: 175 mm

Brakes

• • Brakes: Shimano 105 R7170, 160 mm Front / 140 mm Rear, SM-RT64 rotors
  • Disc size: 160 mm Front/140 mm Rear
  • Brake lever: Shimano 105 ST-R7100
  • Brake caliper: Shimano 105 BR-R7170

Wheels

• • Wheels: Fulcrum Racing 600 DB – Tubeless ready
  • Material: Rims: aluminum, Spokes: stainless steel
  • Rim height: Front: 24 mm; Rear: 24 mm
  • Internal channel width: 20 mm
  • Hubs: Aluminum, Sealed Cartridge Bearings
  • Through axles: Front: HH12-100 – Rear: HH12-142
  • Tires: Pirelli P7 Sport 28 mm
  • Maximum tire size: 28 mm (nominal width)

Components

• Saddle: Prologo Kappa BK, Selle Italia Model X BB FEC
• Handlebar: Deda Zero2; Sizes 42s – 48s: Width: 400 mm, Sizes 50s – 54s: Width: 420 mm, Sizes 56s – 58s: Width: 440 mm
• Stem: Deda Zero2; Sizes 42s – 45s: Length: 90 mm, Sizes 48s – 50s: Length: 100 mm, Size 52s: Length: 110 mm, Sizes 54s – 58s: Length: 120 mm, Size 58s: Length: 130 mm
• Handlebar Tape: Colnago Grip Black
• Bottle cage: Colnago Matte Black (1x)
