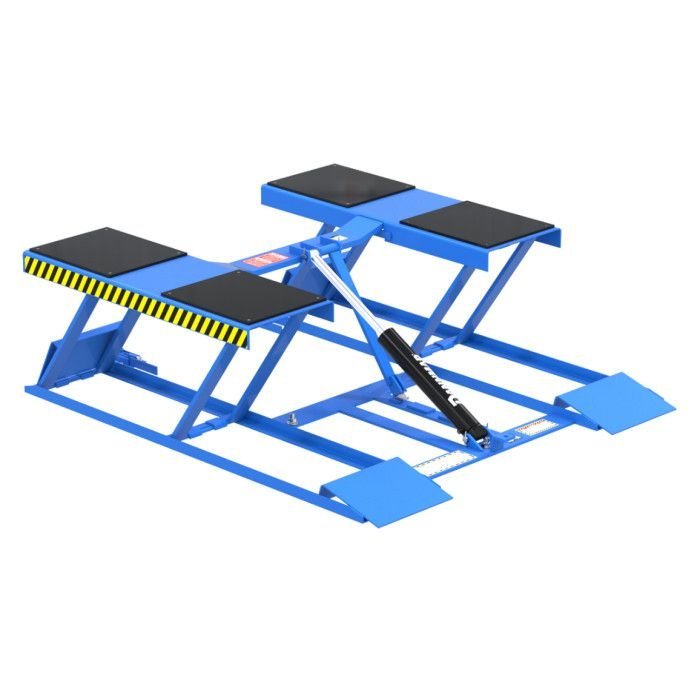

Dannmar’s DLR-6 low-rise lifts helps you easily raise vehicles weighing up to 6,000 lbs. and even do so using less shop area. These work well in both commercial shops and for car enthusiasts who need to raise a vehicle for most maintenance type repairs. With the ability to raise the vehicle a little more than two feet, oil changes, tires, brakes, and lower body detailing becomes easier.

Features

• 6,000 lbs. Lifting Capacity
• Low-Profile Height
• Single-Point Safety Release
• Industrial-Grade Hydraulic Cylinder
• Electric / Hydraulic Power System
• Multi-Position Safety Locks
• Rugged Solid Rubber Lift Blocks
• Dropped Cross Bar for Added Clearance for Low Vehicles and Low Frames
• Heavy-Duty, Long Lasting Steel-Channel Frame

Specifications

• Lifting Capacity: 6,000 lbs. (2,724 kg)
• Lowered Height: 4″ (102 mm)
• Max. Lifting Height (w/o Adapters): 26″ (660 mm)
• Max. Lifting Height + 1.5″ Blocks: 27.5″ (699 mm)
• Max. Lifting Height + Optional 3″ Blocks: 29″ (737 mm)
• Pad Length: 53″ (1,346 mm)
• Overall Width: 70.5″ (1,791 mm)
• Overall Length: 82″ (2,083 mm)
• Tow Cart Height: 47.5″ (1,209 mm)
• Tow Cart Width: 14.75″ (374 mm)
• Tow Cart Depth: 8.25″ (210 mm)
• Lifting Time: 45 sec
• Motor: 110-VAC / 50-60 Hz / 1Ph
• Shipping Weight: 940 lbs. (426 kgs)
• Shipping Dimensions: 83″ x 73″ x 21″ (2,108 mm x 1,854 mm x 533 mm)

Limited Warranty

• Two Years (24-Months) Warranty on the Lift Structure
• One Year (12-Months) Warranty on the Hydraulic Cylinder(s) and Power Unit
• One Year (12-Months) Warranty on Operating Components
• One Year (12-Months) Warranty on Electrical Components (excluding Power Unit)
