Red on Red – One of Fifty

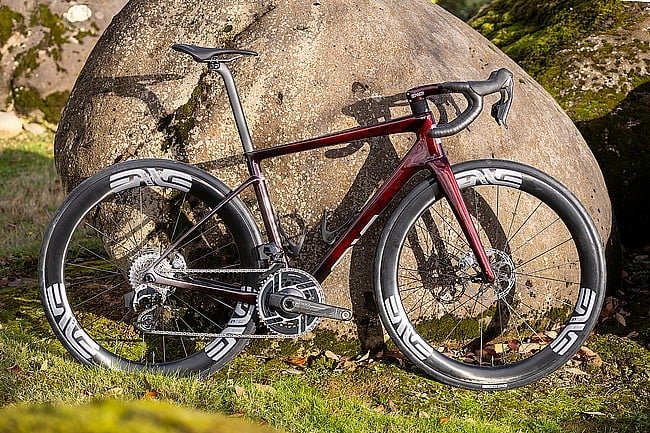

The ENVE Melee RED LTD Road Bike is a custom-painted, ultra-high specced carbon race machine.

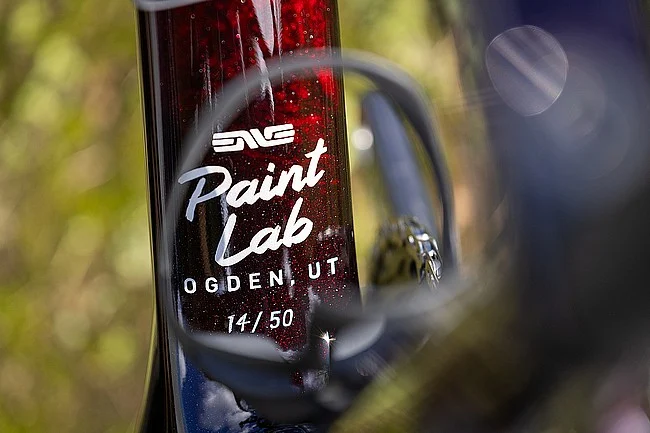

From ENVE’s Paint Lab at their Ogden, Utah headquarters, the Melee LTD x SRAM RED will be produced in a one-time run of 50 with individual numbering for each bike. Featuring a dark red marble that fades to black with silver flake – the finish is designed to compliment SRAM’s new RED AXS components. The complete offering includes a paint-matched SES AR One-Piece Handlebar, SES 4.5 wheels with custom decals, and of course a full SRAM RED build.

Real World Fast

Developed in CFD and the wind tunnel, the Melee features refined tube shapes that have been tuned to complement their SES™ rim shapes and deliver aerodynamic performance. Additional features such as the Integrated Front-End add to the Melee’s slippery design.

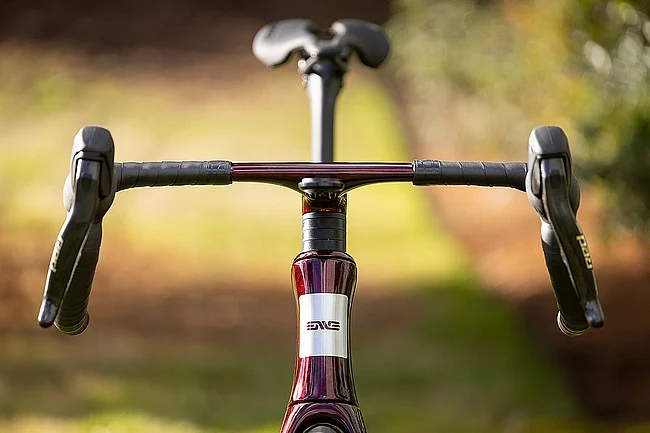

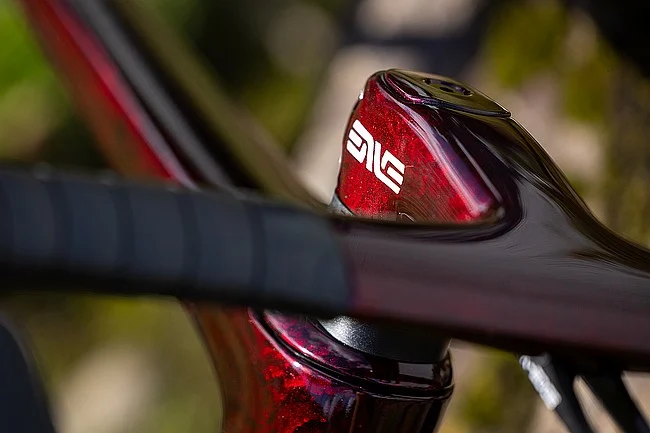

The Integrated Front-End routes wires and hoses through the bar, stem, and headset, where they’re secured using ENVE’s anti-rattle finishing kit, allowing them to remain silent, out of sight, and out of the wind.

Features:

• Custom-painted, limited edition; 1/50
• SRAM RED AXS E1 Groupset
• SES 4.5 Wheelset
• Color-matched SES AR One-Piece Handlebar
• Balanced for aero efficiency and weight savings
• Tube shapes complement SES rim shape
• Integrated Front-End hides wires and brake hoses
• ENVE IN-Route Internal Routing System
• Wind tunnel tested for performance at 32 kph/20 mph and 48 kph/30 mph
• Optimized for tires 27-32mm, fits up to 35mm
• ENVE Factory Limited Warranty
• ENVE Incidental Damage Protection

Specs:

• Frameset: Melee LTD
• Seatpost: ENVE Aero
• Bar/Stem: SES AR One-Piece IN-Route
• Wheels: SES 4.5 XDR
• Drivetrain: SRAM Red AXS
• Crankset: Power 48/35
• Cassette: 10-33
• Rotors: Paceline X 160/160
• Tires: ENVE SES 29c
• Saddle: ENVE x Selle Italia SLR Boost Carbon
• Bar Tape: ENVE Bar Tape Black
• Cages: ENVE Carbon
• Frame Material: ENVE M.O.D Carbon
• Fork Material: ENVE M.O.D Carbon
• Frame Size/Fork Rake: 52cm/47
• Frame Weight: 850g +/- 2% (Size 56, Painted, No Hardware)
• Headset: ENVE Integrated IS52/IS52 Internal Drop-In
• Headset Bearing: 1.5″ IS52 Upper and Lower
• BB Type: T47 Inboard Bearing
• Brake Mount: Flat Mount
• Front Axle: 12×100 (Total Length: 122, TP:1.5, TL:15)
• Rear Axle: 12×142 (Total Length: 168, TP:1.5, TL:14
• Minimum Tire Size: 25c
• Optimal Tire Size: 27c-32c
• Maximum Listed Tire Clearance: 35c
• Frame Routing: Internal
