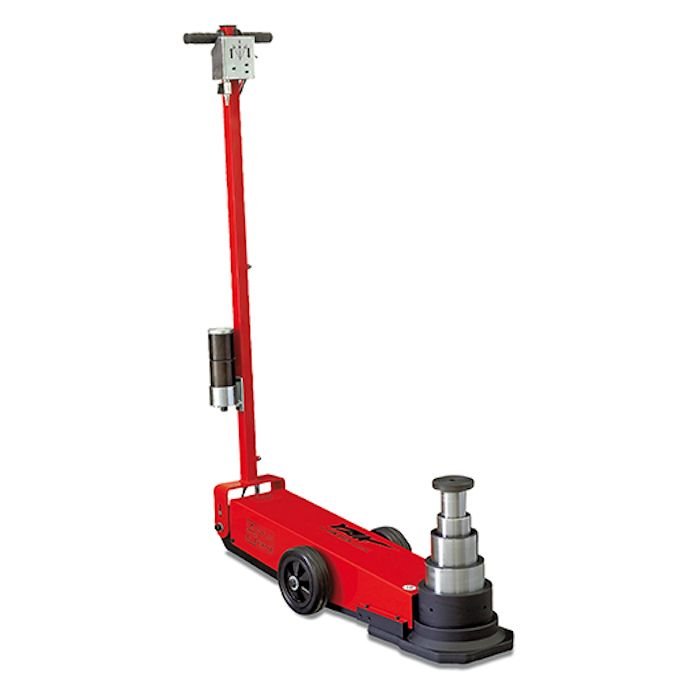

The ESCO 92010 Yak 17-28-55-88 Ton Air Hydraulic Jack is a practical and effective 4-stage jack designed for low access pointing lifting applications and heavy high tonnage lifting applications. Designed to be portable and easy to use, with storage for the extensions on the handle, this jack is incredibly portable. Jack comes with three extensions (0.5″, 4.75″, 2.75″). Jack lifting capacity to handle up to 88 Tons. With a minimum height of 7.09″ and a maximum height of 18.9″ (without extensions), this jack is perfect for any service bay or truck.

Features

• Air Hydraulic Jack For Heavy Vehicles, Practical And Effective
• 4-Stage Jack: 88-Ton (1) 55-Ton (2) 28-Ton (3) 17-Ton (4)

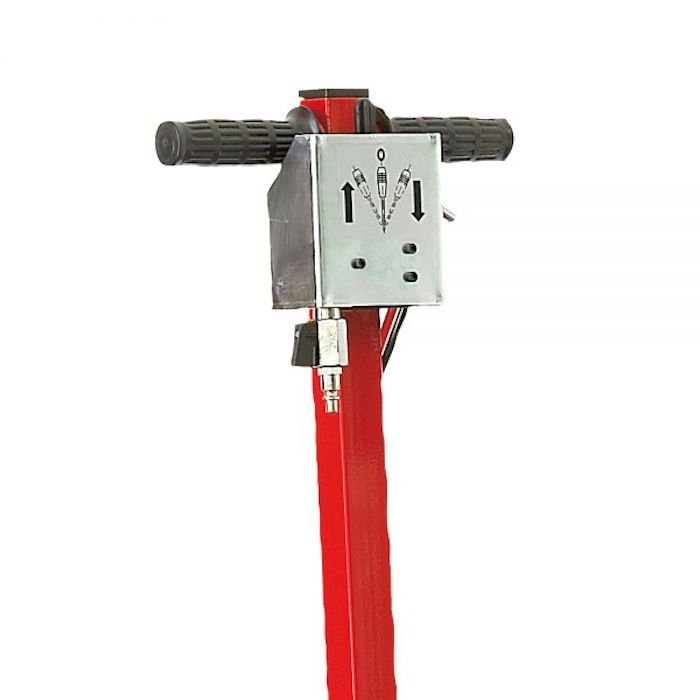

• Easy To Use Up/Down Function Operation
• Adjust Handle Position With Simple Motion
• Centrally Place Wheels for Perfect Balance And Ease Of Movement
• Includes (3) Extensions For Variable Height With Storage On Handle
• The Pistons Move Back Automatically
• Two Descent Valves Guarantee Perfect Holding In All Situations And Controlled Speed Under Load
• Ideal For Workshops, Mobile Workshops, Tire Repairers And Bodywork Shops
• 3-Year Extended Warranty

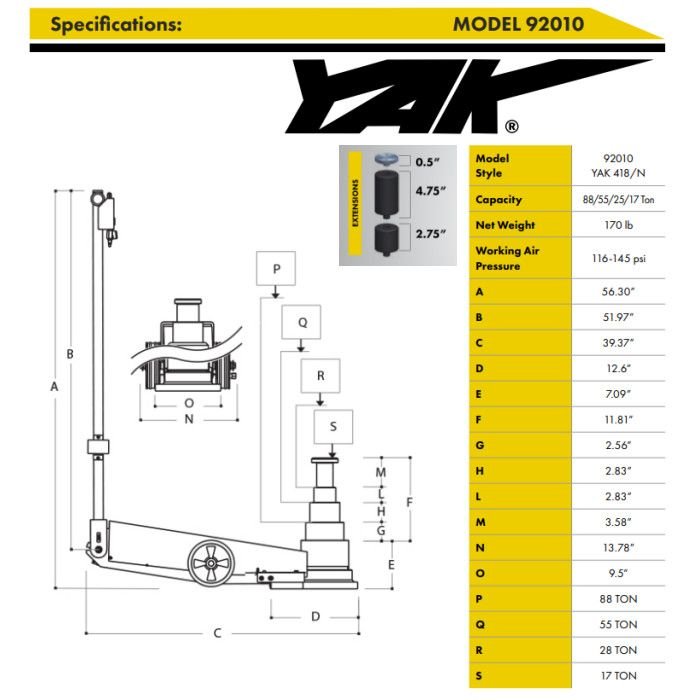

Specifications

• Style: YAK 418/N
• Overall Length: 39.37″
• Lifting Capacity: 88/55/28/17 Ton
• Stroke: 11″ (300 mm)
• Air Pressure: 116-145 PSI
• Min. Height: 7.09″ (77mm)
• Max. Height: 18.89″ (480mm)
• Handle Length: 51.97″ (1320mm)
• Extensions Included: 0.5″ – 4.75″ – 2.75″ (12mm – 120mm – 70mm)
• Weight: 170 lbs. (77 kg)
• Warranty: (3) Year Limited*
