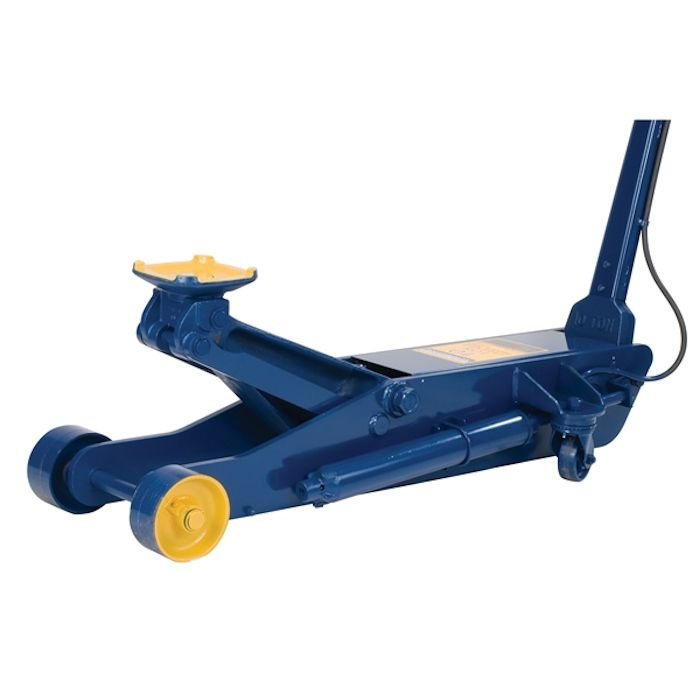

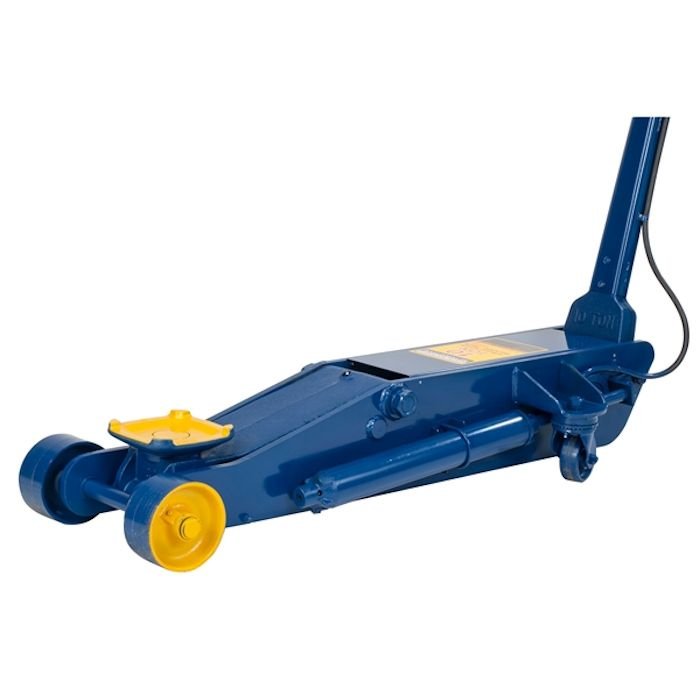

The Hein-Werner HW93662 10-Ton Air Assist Long Chassis Service Jack is quick, reliable, and convenient. Ideal for lifting trucks, trailers, and buses by the axle, differential, or frame. The handle adjusts to three pumping positions and the long chassis provides accessibility to hard to reach points. Dual piston action provides speed to contact and power to lift. A long chassis makes it easy to access the hard-to-reach points. The handle adjusts to three pumping positions and the T-handle with a release knob allows for the exact positioning of the load. The sealed hydraulic unit keeps out dirt, grime, grit, and moisture for longevity. Features cast lift arm for heavy loads. Operates manually or with air assist.

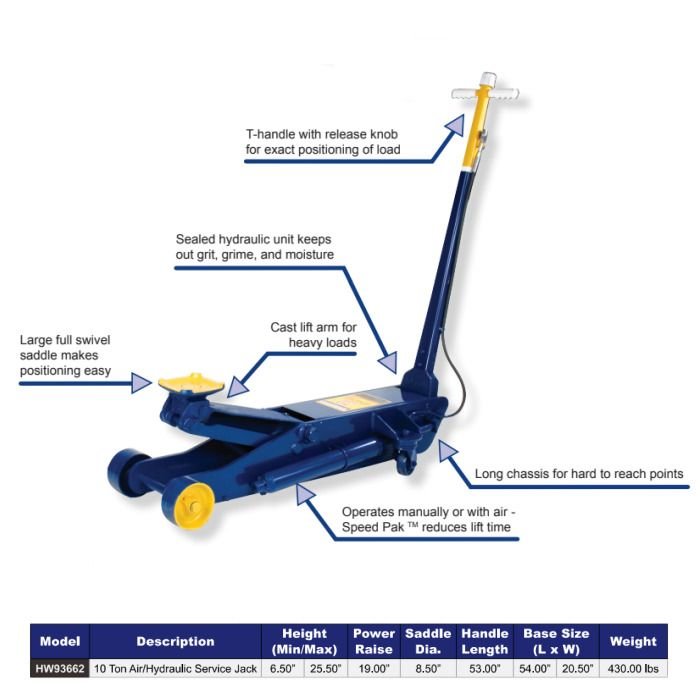

Features

• Lifting Trucks, Trailers, And Buses By The Axle, Differential, Or Frame
• Dual Piston Action Provides Speed To Contact And Power To Lift
• Long Chassis For Hard To Reach Points
• Handle Adjusts To Three Pumping Positions
• T-Handle With Release Knob For Exact Positioning Of Load
• The Sealed Hydraulic Unit Keeps Out Grit, Grime, And Moisture
• Large Full Swivel Saddle And Ball Bearing Caster Make Positioning Easy
• Cast Lift Arm For Heavy Loads
• Operates Manually Or With Air
• Patented “Speed Pak” Reduces Handle Pumping
• Uses Standard Shop Air 110-175 PSI Pressure (140-175 PSI For Rated Load)
• Made In USA

Specifications

• Capacity: 10-Tons
• Min Height: 6-1/2″
• Max Height: 25-1/2″
• Power Raise: 19″
• Saddle Diameter: 8-1/2″
• Handle Length: 53″
• Base Size: 54″ L x 20-1/2″ W
• Weight: 430 lbs.
• Warranty: (2) Years Limited

Hein-Werner Limited Warranty

• For a period of two (2) years from the date of purchase, SFA Companies will repair or replace, at its option, without charge, any of its products that fail due to a defect in material or workmanship under normal usage. This limited warranty is a consumer’s exclusive remedy.
