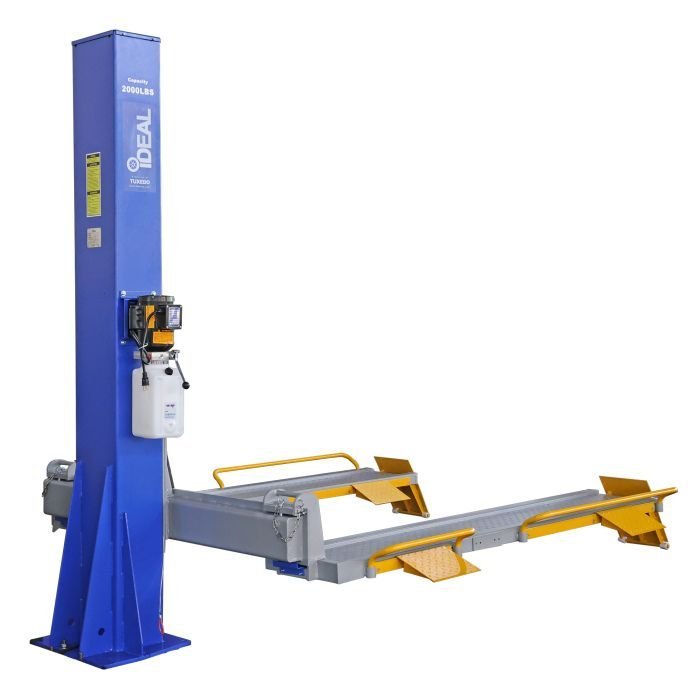

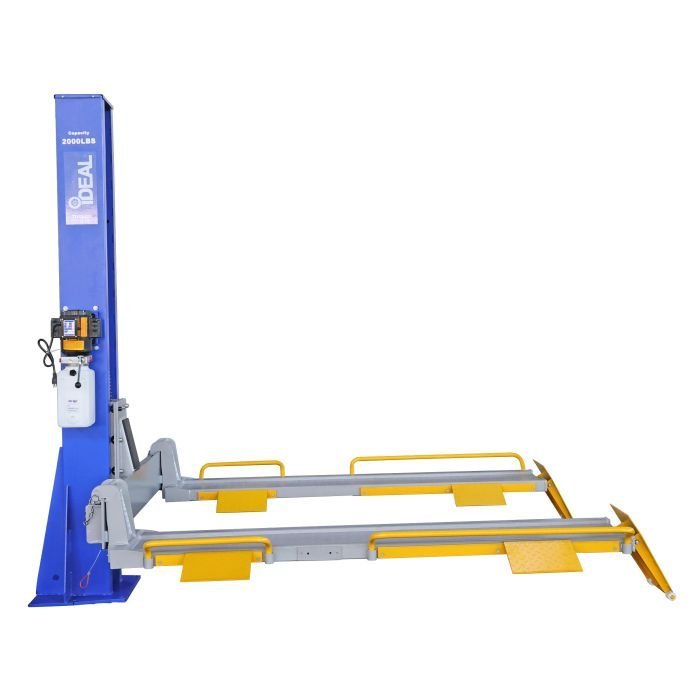

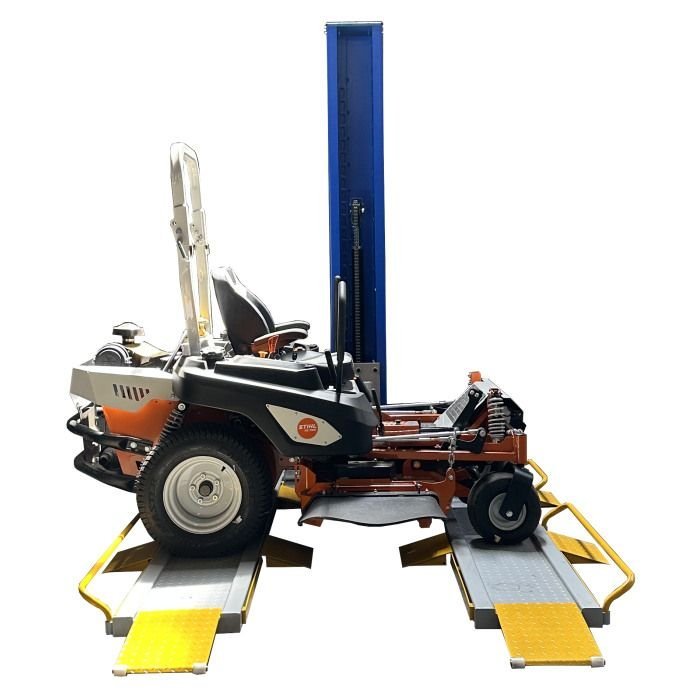

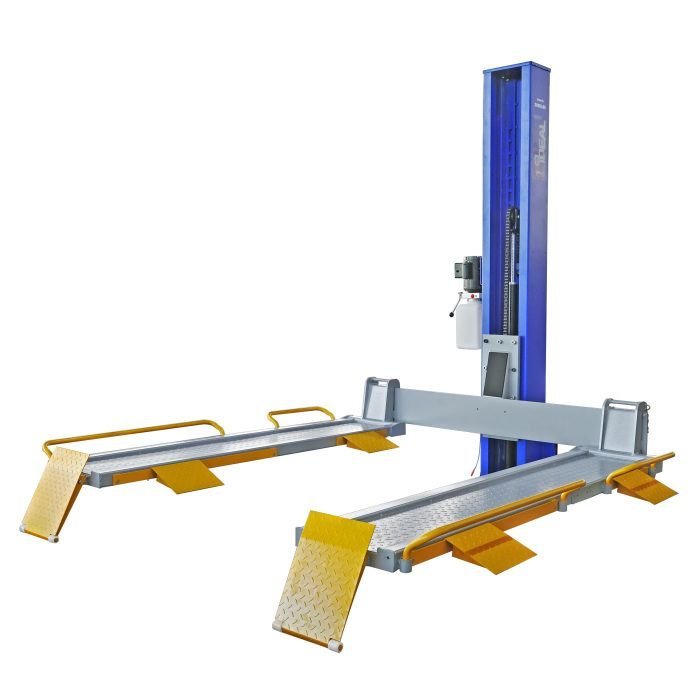

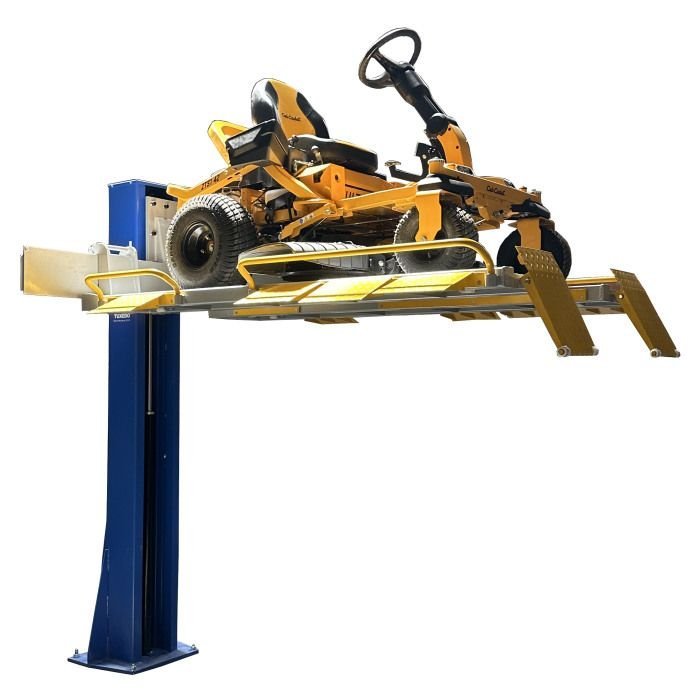

The iDEAL SC-2K-UTV-X is an innovative 2,000 lbs. single column, high-rise ‘multi-use’ storage and service lift, incorporating ‘multi-adjustable’ platform design with multi-directional front and side vehicle loading for most ATVs, UTVs, golf carts, riding and zero turn mowers. The low-profile multi-adjustable platforms incorporate spring-loaded ‘quick release / locking nylon rollers & brackets mounted to the underside of each platform, making adjusting the platforms widths ‘quick and easy’.

Features

• 2,000 lbs. Capacity
• Innovative ‘Multi-Use’ Single Column Dual Adjustable Platform Lift Design
• Ideal Storage Solution For Most Small To Mid-Sized ATVs, UTVs, Golf Carts, Riding Lawn Mowers & Zero Turns
• Ability To Easily Load Vehicles From Either The ‘Front Or Side’ Of Platforms
• Adjustable Platforms Provide Undercarriage Clearance To Easily Service Most Riding Lawn Mower Decks, Blades & UTV / ATV Engine Service
• Easily Adjust & Secure Platforms To Desired Widths Using Integrated ‘Retractable’ Nylon Roller Brackets & ‘Quick Release’ Bolster Pins
• Extended Rise Height For Increased Storage & Service Clearances
• Alternate Power Unit Mounting To Front, Side Or Rear Of Column
• ‘Quick Removal’ Outer Wheel Stop Bars
• (8) Steel ‘Quick Adjust / Multi-Position’ Platform Side Ramps
• (2) Platform Steel Wheel Stop ‘Pivot Ramps’ With Nylon Rollers
• Reliable 115VAC Electric / Hydraulic Operation With Single Point Lock Release
• Durable, High Quality Steel Construction
• Low Profile Platform Design
• (20) Locking Height Positions
• Durable Powder-Coat Finish

Specifications

• Capacity: 2,000 lbs.
• Width Overall: 102″
• Height Overall: 106.3″
• Depth / Length Overall: 130″
• Max Clearance Under Platforms: 76.8″
• Platforms Min Height: 4.7″
• Platforms Max Height: 81.3″
• Platform Width: 17.7″
• Platform Runway Width: 12.2″
• Platform Length: 90.4″
• Adjustable Platform Widths (OD): 52.8″ to 84.6″
• Adjustable Side Ramps Widths (CL): 35.4″ to 67″
• Locking Positions: 20
• Power: 115V – 20 Amp – 1PH
• Shipping Weight: 1,624 lbs.
• Warranty: 5 Years Structure, 1 Year Parts, No Labor
