Power Up Your Way

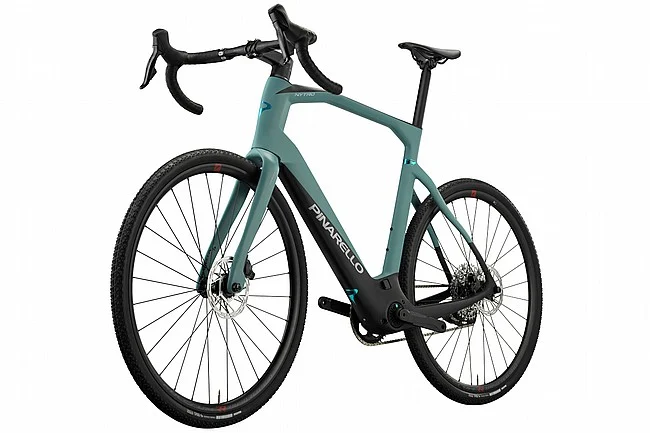

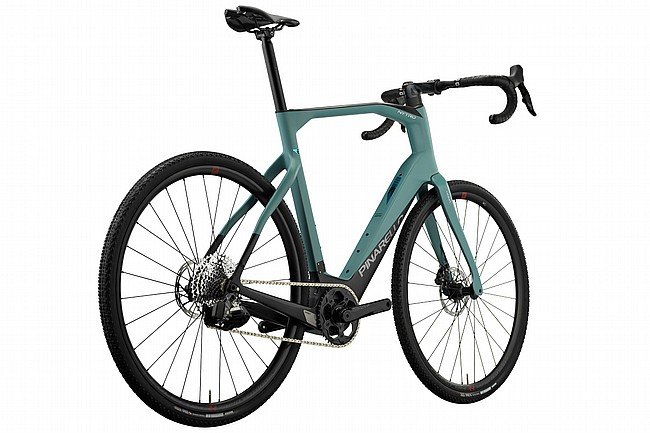

The Pinarello Nytro E5 Gravel SRAM Rival AXS opens up a world of possibilities to experience cycling! This range is designed for all cyclists looking to enjoy the emotions of cycling. It’s created with adventure in mind, allowing riders to tackle long rides, steep climbs, and rougher roads with more agility and confidence than a traditional bike. And this version’s off-road capabilities mean your only limit is your imagination.

The secret of T700 Toray Carbon is to maintain reactivity and performances but to offer a higher dampening to absorb all road vibration. More comfort, more fun. A distinctive Pinarello Technology since 2000, the shape of the Onda fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.

Since the beginning, Pinarello understood that while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

The Harmonic Pin Ring Transmission (HPR) is a result of TQ’s decades-long experience in the development and engineering of electric motors for robots, satellites, space stations and mars rovers.

Features:

• • CARBON T700 UD
  • ONDA FORK
  • ASYMMETRIC FRAME
  • TQ-HPR50 DRIVE UNIT

• FRAME – TorayCa T700 UD, TiCR™ Cable Routing
• FORK – Nytro Onda carbon fork with forkflap™, tapered head tube
• CRANKSET AND CHAINRINGS – SRAM Rival ETAP AXS 12S
• REAR DERAILLEUR – SRAM Rival 12S
• CASSETTE – SRAM Rival 12S
• CHAIN – SRAM Rival 12S
• MOTOR – TQ-HPR50 Drive Unit
• BATTERY – 360 Wh Integrated Battery
• DISPLAY – Integrated and Compatible with Ant+ Bike Computers
• FRONT BRAKE DISC – SRAM Rival 2 pistons, 160mm rotor
• REAR BRAKE DISC – SRAM Rival 2 pistons, 140mm rotor
• HANDLEBAR – MOST Jaguar GR TiCR Alu
• STEM – MOST Tiger Aero Alu TiCR
• TIRES – Maxxis Rambler 700x40c
• AXLES- Pinarello Axle 12×100 & 12×142, Tool Free Removal
