The QuickJack 5000TL Portable Car Lift System is recommended for use with sports cars, sedans & more. This 5,000 lbs. capacity lift is extremely popular, probably our most referenced and most used model when we do demos, videos and training programs. In a way, it’s the go-to portable car lift. If you’re not sure which model is for you, unless you drive a truck/SUV, there’s very little chance your vehicle is too heavy for this lift. The incredible versatility of this model makes it easy to maneuver across parking lots, track spaces and certainly home garages. Sitting only 3 inches off the ground when lowered, it’s arguably the most ideal garage lift for low-stances vehicles. Corvette and Porsche owners love QuickJack!

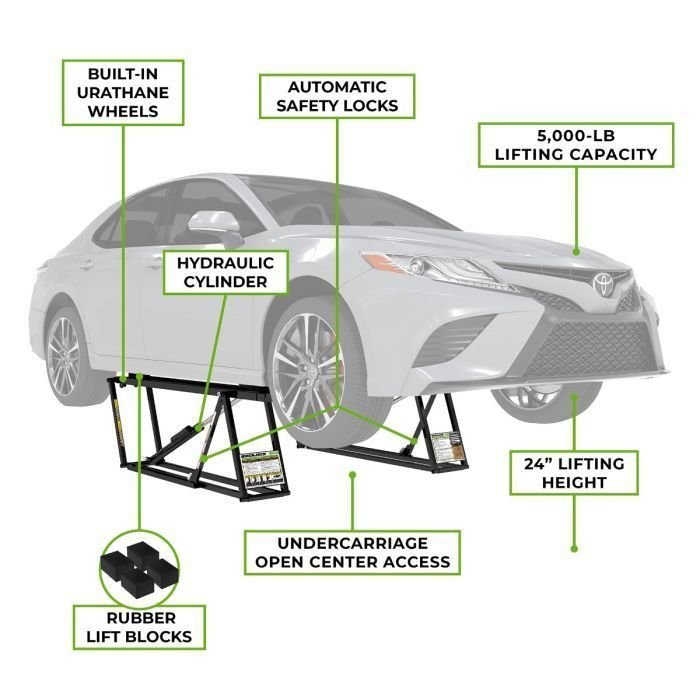

Features

• 5,000 lbs. Capacity ALI Certified
• From Stow To Go In Less Than 60 Seconds
• Dual-Position Automatic Safety Lock Bars Engage Automatically As The Lift Rises
• Dual Locking Positions – Mid Level And Full Rise
• Extended, Cantilevered Rubber Block Trays Provide Increased Rubber Block Reach
• Portable Power Unit Features A Remote Push-Button Control For Simple Operation
• Steel Mounted UHMW Wheels Provide Effortless Rolling Of Jack Frames On Floor
• Remote Pendant Control Features A 13-Foot Cord
• Power Unit Features A Built-In Hydraulic Flow Divider For Precise Equalized Lifting
• Open-Center Design For Clear Under Car Access
• Quick-Connect/Disconnect Hoses For Fast And Convenient Set-Up
• Convenient Handles Allow For Easy Positioning Of The Jack Frames
• Strong 14-Gauge Welded Steel Frames
• It’s A Jack You Can Use When You Need It Then Conveniently Store Out Of The Way
• Provides Quick Wheels-Free Convenience For Brake And Tire Service And Clear Undercarriage Access Of All Types Of Vehicles
• Low-Profile Jack Frames Fit Under Most Race Cars
• Powerful Hydraulic Cylinders Eliminate The Need For Screw Mechanisms
• Integrated Power-Assist Canisters Increase The Lowering Speed
• Hydraulic Cylinders Feature Integrated Velocity-Fuse Safety Valves
• A Convenient Metal Carrier With Handle Keeps The Power Unit Protected And Easily Mobile
• Includes An Eight Piece Set Of Adjustable And Stackable Rubber Lift Blocks To Support Cars At Precise Locations For Increased Stability And Safety
• Detailed Installation, Maintenance And Safety Instructions Accompany Each Quickjack System
• Durable Powder Coat Finish

Note: This unit is configured with a 110V AC power unit.

Also Available 208-240V AC 50/60Hz

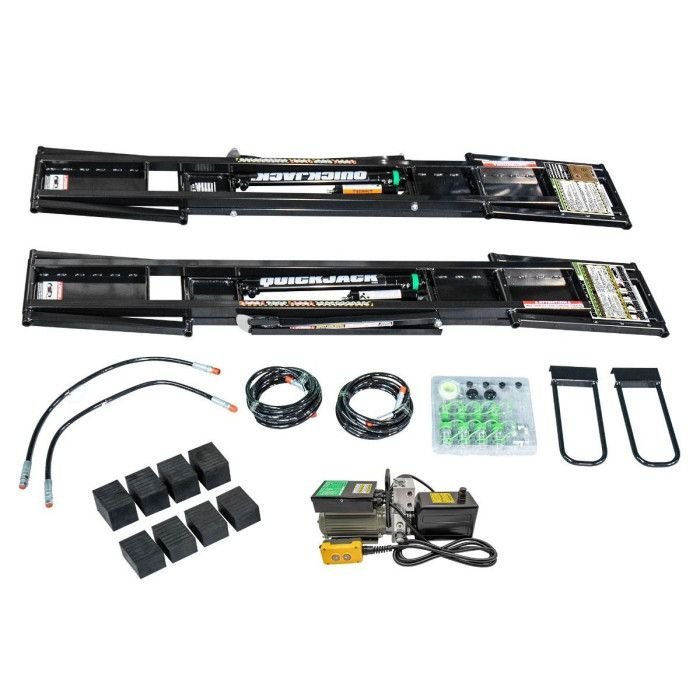

What’s Included

• 5000TL Left Frame Assembly
• 5000TL Right Frame Assembly
• 1x Hydraulic Power Unit With Control
• 4x Medium Rubber Lift Blocks (2″)
• 4x Tall Rubber Lift Blocks (3″)
• 2x Short Hydraulic Hoses
• 2x Long Hydraulic Hoses
• 2x Frame-Positioning Handles
• Fittings And Thread Tape For Setup
• Instruction Manual

Requirements

• (3) Liters Of Automatic Transmission Fluid
• Air Source To Inflate Air Cylinders Up To 50 PSI
• Assembly Tools

Specifications

• Warranty: (1) Year Limited
