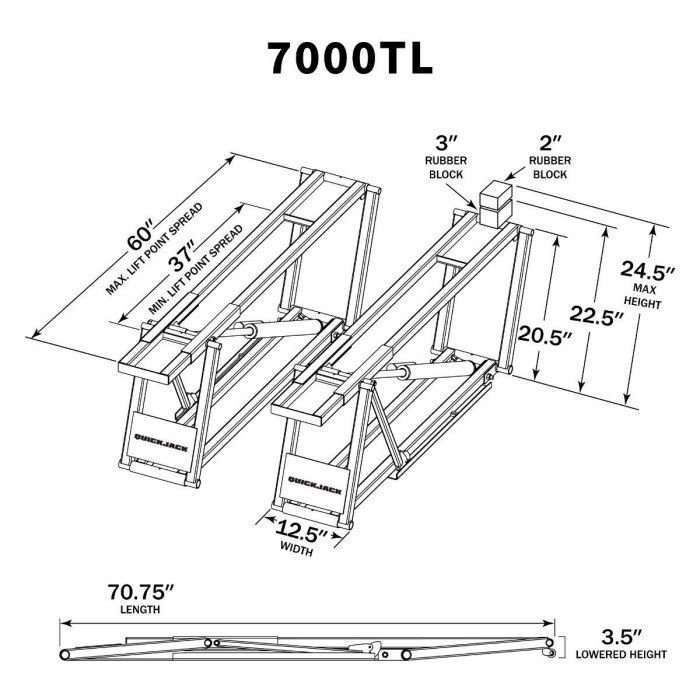

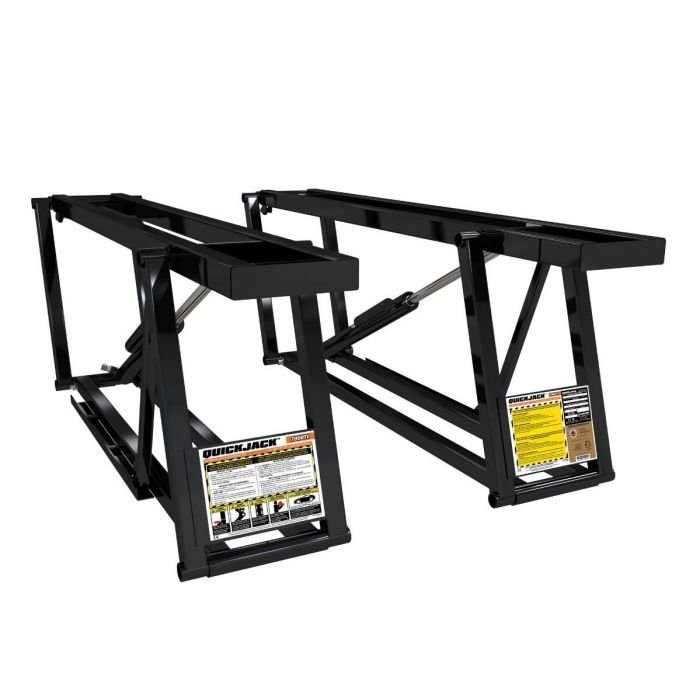

The QuickJack 7000TL Portable Truck Lift System is recommended for use with light trucks and SUVs. This heavy-duty, standard-length portable car lift is popular and versatile as the lighter-capacity 5000TL. If you have a truck or SUV, pair this model with the optional SUV/truck adapter kit to get the most lift possible. The 7000TL’s lowered height is only 1/2″ taller than the 5000TL, which means the 7000TL can lift virtually everything the lighter model can, plus a full extra ton. The frames are reinforced with box-welded steel – hence the 1/2″ of added height – to give it the extra umph it needs for heavy lifting.

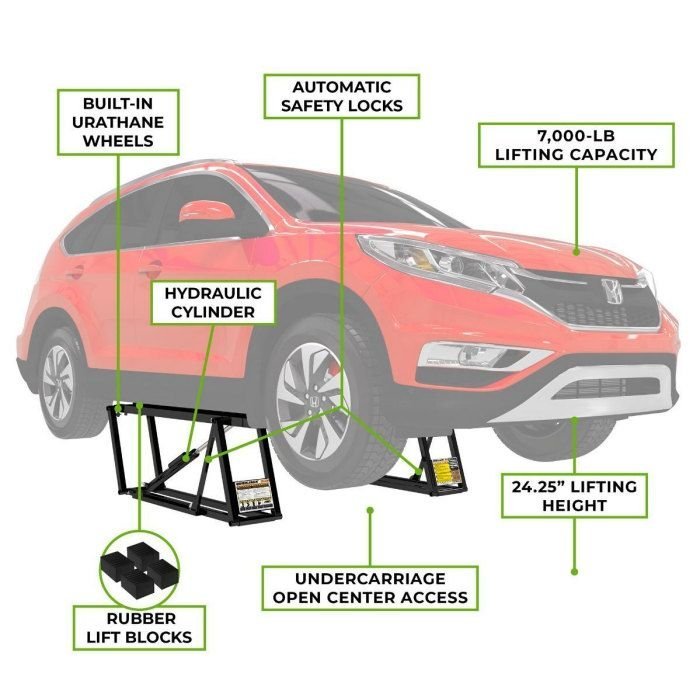

Features

• 7,000 lbs. Capacity ALI Certified
• From Stow To Go In Less Than 60 Seconds
• Dual-Position Automatic Safety Lock Bars Engage Automatically As The Lift Rises
• Dual Locking Positions – Mid Level And Full Rise
• Extended, Cantilevered Rubber Block Trays Provide Increased Rubber Block Reach
• Portable Power Unit Features A Remote Push-Button Control For Simple Operation
• Steel Mounted UHMW Wheels Provide Effortless Rolling Of Jack Frames On Floor
• Remote Pendant Control Features A 13-Foot Cord
• Power Unit Features A Built-In Hydraulic Flow Divider For Precise Equalized Lifting
• Open-Center Design For Clear Under Car Access
• Quick-Connect/Disconnect Hoses For Fast And Convenient Set-Up
• Convenient Handles Allow For Easy Positioning Of The Jack Frames
• Strong 14-Gauge Welded Steel Frames
• It’s A Jack You Can Use When You Need It Then Conveniently Store Out Of The Way
• Provides Quick Wheels-Free Convenience For Brake And Tire Service And Clear Undercarriage Access Of All Types Of Vehicles
• Low-Profile Jack Frames Fit Under Most Race Cars
• Powerful Hydraulic Cylinders Eliminate The Need For Screw Mechanisms
• Integrated Power-Assist Canisters Increase The Lowering Speed
• Hydraulic Cylinders Feature Integrated Velocity-Fuse Safety Valves
• A Convenient Metal Carrier With Handle Keeps The Power Unit Protected And Easily Mobile
• Includes An Eight Piece Set Of Adjustable And Stackable Rubber Lift Blocks To Support Cars At Precise Locations For Increased Stability And Safety
• Detailed Installation, Maintenance And Safety Instructions Accompany Each Quickjack System
• Durable Powder Coat Finish

Note: This unit is configured with a 110V AC power unit.

Also Available 208-240V AC 50/60Hz

What’s Included

• 7000TL Left Frame Assembly
• 7000TL Right Frame Assembly
• 1x Hydraulic Power Unit With Control
• 4x Medium Rubber Lift Blocks (2″)
• 4x Tall Rubber Lift Blocks (3″)
• 2x Short Hydraulic Hoses
• 2x Long Hydraulic Hoses
• 2x Frame-Positioning Handles
• Fittings And Thread Tape For Setup
• Instruction Manual

Requirements

• (3) Liters Of Automatic Transmission Fluid
• Air Source To Inflate Air Cylinders Up To 50 PSI
• Assembly Tools

Specifications

• Warranty: (1) Year Limited
